Quick Details

  • Type: Engine Analyzer
  • Voltage: 220V/380V, 220V/380V
  • Power: 7.5KW/11kw/15kw/22kw
  • Certification: CE/ISO9001 Certificate
  • Applicable Models: Euro II standard vehicles and fuel system vehicles
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: BFChina
  • Model Number: 12PSB-BFD
  • Warranty: 1 Years
  • Color: Green or Blue
  • Language: English, Chinese
  • Function: Diesel injection pump testing
  • Motor power: 7.5KW/11kw/15kw/22kw
  • Delivery time: 15 days after your deposite
  • MOQ: 1 set
  • ODM/OEM: Support
  • Product Name: 12PSB-BFD 2-12 cylinders BOSCH diesel fuel injection pump test bench

Packaging & Delivery

Packaging Details 12PSB-BFD High speed diesel fuel injection pump test bench is packed by wooden box package or as your requirements
Port Qingdao




   12PSB-BFD High speed diesel fuel injection pump test bench



Operating videos



BF1178 common rail injector and pump test bench

https://www.youtube.com/watch?v=0ZlHcqYqtMk

BF1176 common rail injector test bench

https://www.youtube.com/watch?v=88KhnEcvTDs&feature=youtu.be

CRI common rail injector repair instruction

https://www.youtube.com/watch?v=lzLWMoYlMQk





Machine Details

Diesel fuel injection pump test bench 12PSB-BFD is our unique style pump test machine which is used to repair high-power low speed Ship machine, generator P9 and Z pump. Its a high performance and energy-saving machine.



1. Features and Advantages

BFB key parts.jpg

>>> Three system languages: Chinese, English and Russian (other languages can choose as customer's requirements).

>>> Main engine frequency conversionmanual and automatic two operating modes.

>>> Automatic mode can process multi- gears speed preset.

>>> Automatic oil measuring and counting system.

>>> Has short-circuit protection feature

>>> Two sets of air supply adjustment knobs on both sides,easy operation

>>> Automatic oil measuring plate (optional install).

 2. Functions



>>> Test each cylinder's oil supply quantity under different rotate speed.

>>> Check each cylinder's injection timing under static state.

>>> Check the performance of mechanical governor.

>>> Test the electromagnetic valve of distributor pump.

>>> Test the tightness of injection pump.

>>> Measure the pump body internal pressure and oil return pressure of distributor pump.

>>> Check the performance of pressure equalizer, pneumatic governor.

>>> Equipped with DC.1 2V/24V power supply, used for magnetic valve's driving and testing.

3Technical Parameters

Technical Items Parameters
Voltage380V/22V
Rated output power7.5KW/11KW/15KW/ 18.5KW/22KW
Speed0--4000r/min
Oil supply10L/min , 20L/min
Oil supply high pressure0~3.5Mpa
Oil supply low pressure0~0.35Mpa
Air supply pressure range0~0.15Mpa
DC power12V/24V
Fuel oil temperature40 ± 2 ℃
Size2150 × 750× 1850mm
Weight910kg

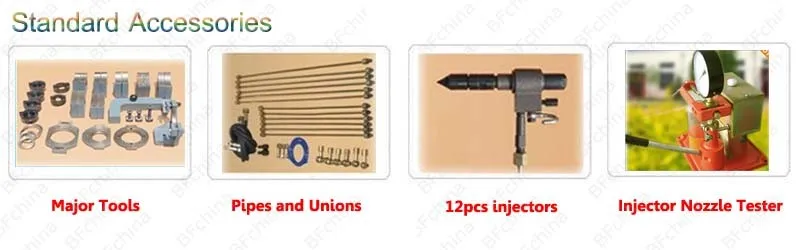

4. Optional Accessories and Tools
 Standard accessories.jpg
5Applications

 >>> Vehicles: Automobiles, tractors, agriculture machines, dynamos, engineering machinery



>>>  Sea Transportation



>>>  Scientific research of teaching



>>>  National defense

After-sale service



1. Technical support online service provided.

2. Technical files service provided.

3. On-site training service provided.

4. Spare parts replacement and repair service provided.

Packaging & Shipping



>>>  Packaging : wooden case with water-proof membrane

>>>  Delivery: within 15 days after receiving the deposit

BFB--Packing and shipping.jpg
