Quick Details

  • Type: Engine Analyzer
  • Voltage: 220V/380V, 220V/380V
  • Power: 5.5KW
  • Certification: CE/ISO9001 Certificate
  • Applicable Models: Euro III standard vehicles and fuel system vehicles
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: BFChina
  • Model Number: BF1166
  • Warranty: 1 Years
  • Color: Green or Blue
  • Language: English, Spanish, France, Chinese, Russian
  • Function: Test Common Rail Injector testing
  • Motor power: 5.5kw
  • Delivery time: 15 days after your deposite
  • MOQ: 1 set
  • ODM/OEM: Support
  • Special Features: Piezo injector, HP0, EUI/EUP can be tested too
  • Product Name: Common rail fuel injector diagnostic tools test bench

Packaging & Delivery

Packaging Details BF1178 1600 data coding BOSCH/DENSO ommon rail diesel injector pump test bench is packed by wooden box package or as your requirements
Port Qingdao





   BF1178 1600 data coding BOSCH/DENSO ommon rail diesel injector pump test bench



Operating videos



BF1178 common rail injector and pump test bench

https://www.youtube.com/watch?v=0ZlHcqYqtMk

BF1176 common rail injector test bench

https://www.youtube.com/watch?v=88KhnEcvTDs&feature=youtu.be

CRI common rail injector repair instruction

https://www.youtube.com/watch?v=lzLWMoYlMQk





Machine Details



Common rail test bench BF1178 is one updated equipment which used to test common rail pumps, common rail injectors and common rail pipe like BOSCH/DELPHI/DENSO/SIEMENS etc brands.  This equipment adopts humanizing control interfaces, can control the parameters of the oil pressure, pulse width, frequency and the scale valve duty cycle.



1. Features and Advantages







2. Functions



>>>  Test BOSCH, DENSO, DELPHI, SIMENS etc brands Injectors

>>>  Measuring the oil injection quantity and oil return quantity of common rail injector under each working state

>>>  Can set common rail injector’s injection status, and measuring the oil quantity.

>>>  Proceed high pressure washing towards the common rail injector

>>>  Custom setting the characteristics of rail pressure, pulse width and oil measuring time



Optional Functions:



This type can add the  PIEZO injectors testing functions as customers' need.

3Technical Parameters

Technical Items Parameters
Voltage380V/22V
Rated output power7.5kw/11kw
Speed0--3600r/min
Spindle steeringforward/backward
Continous injection timeo--1000 time
Rail pressureo--1800 bar
Pulse width100--3000μs
Fuel oil temperature40 +/- 2℃
Test oil filtration ratingless than 5μ
Size1800*850*1550mm
Weight800kg

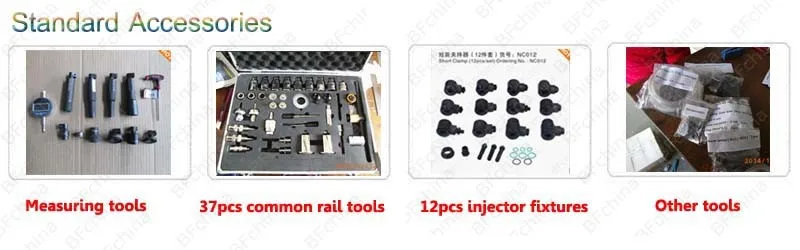

4. Standard Accessories
5Applications

 >>> Vehicles: Automobiles, tractors, agriculture machines, dynamos, engineering machinery



>>>  Sea Transportation



>>>  Scientific research of teaching



>>>  National defense

After-sale service



1. Technical support online service provided.

2. Technical files service provided.

3. On-site training service provided.

4. Spare parts replacement and repair service provided.

Packaging & Shipping



>>>  Packaging : wooden case with water-proof membrane

>>>  Delivery: within 15 days after receiving the deposit
