Quick Details

  • Type: Engine Analyzer
  • Voltage: 220V/380V, 220V/380V
  • Power: 5.5KW
  • Certification: CE/ISO9001 Certificate
  • Applicable Models: Euro III standard vehicles and fuel system vehicles
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: BFChina
  • Model Number: BF1186
  • Warranty: 1 Years
  • Color: Green or Blue
  • Language: English, Spanish, France, Chinese, Russian
  • Function: Test Common Rail Injector testing
  • Motor power: 5.5kw
  • Delivery time: 15 days after your deposite
  • MOQ: 1 set
  • ODM/OEM: Support
  • Product Name: Common rail fuel injector diagnostic tools test bench

Packaging & Delivery

Packaging Details BF1186 free updating piezo injector tester diagnostic tools common rail injector test bench is packed by wooden box package or as your requirements
Port Qingdao





   BF1186 free updating piezo injector tester diagnostic tools common rail injector test bench



Operating videos



BF1178 common rail injector and pump test bench

https://www.youtube.com/watch?v=0ZlHcqYqtMk

BF1176 common rail injector test bench

https://www.youtube.com/watch?v=88KhnEcvTDs&feature=youtu.be

CRI common rail injector repair instruction

https://www.youtube.com/watch?v=lzLWMoYlMQk





Machine Details

Common rail injector test bench BF1186, is our new common rail injector test machine, which is controlled by industrial computer.

BF1186 can test BOSCH, DENSO, DELPHI, SIMENS etc brands injectorsalso can test Benz, Landrover,Audi, Volkswagen, BMW and all piezo injectors.





1. Features and Advantages







2. Functions



>>>  Test BOSCH, DENSO, DELPHI, SIMENS etc brands Injectors

>>>  Measuring the oil injection quantity and oil return quantity of common rail injector under each working state

>>>  Can set common rail injector’s injection status, and measuring the oil quantity.

>>>  Proceed high pressure washing towards the common rail injector

>>>  Custom setting the characteristics of rail pressure, pulse width and oil measuring time



Optional Functions:



This type can add the  PIEZO injectors testing functions as customers' need.

3Technical Parameters

Technical Items Parameters
Voltage380V/22V
Rated output power4kw
Speed0--3600r/min
Spindle steeringforward/backward
Continous injection timeo--1000 time
Rail pressureo--1800 bar
Pulse width100--3000μs
Fuel oil temperature40 +/- 2℃
Test oil filtration ratingless than 5μ
Size880*775*1400mm
Weight300kg

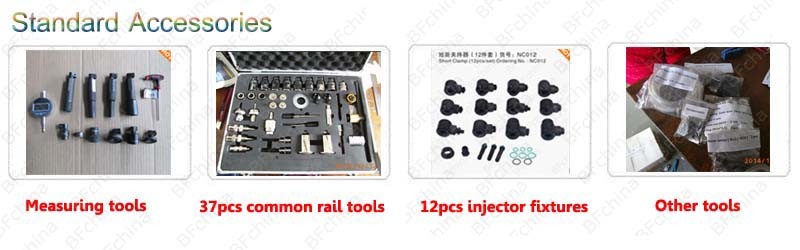

4. Optional Accessories and Tools
5Applications

 >>> Vehicles: Automobiles, tractors, agriculture machines, dynamos, engineering machinery



>>>  Sea Transportation



>>>  Scientific research of teaching



>>>  National defense

After-sale service



1. Technical support online service provided.

2. Technical files service provided.

3. On-site training service provided.

4. Spare parts replacement and repair service provided.

Packaging & Shipping



>>>  Packaging : wooden case with water-proof membrane

>>>  Delivery: within 15 days after receiving the deposit
