Quick Details

  • Type: Engine Analyzer
  • Voltage: 220V/380V, 220V/380V
  • Power: 7.5KW/11kw/15kw/22kw
  • Certification: CE/ISO9001 Certificate
  • Applicable Models: Euro II standard vehicles and fuel system vehicles
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: BFChina
  • Model Number: 12PSB-BFC
  • Warranty: 1 Years
  • Color: Green or Blue
  • Language: Chinese, English and Russian
  • Function: Diesel injection pump testing
  • Motor power: 7.5KW/11kw/15kw/22kw
  • Delivery time: 15 days after your deposite
  • MOQ: 1 set
  • ODM/OEM: Support
  • Product Name: 12PSB-BFC 2-12 cylinders BOSCH diesel fuel injection pump test bench

Packaging & Delivery

Packaging Details 12PSB-BFC 2-12 cylinders BOSCH diesel fuel injection pump test bench is packed by wooden box package or as your requirements
Port Qingdao





   12PSB-BFC low price digital display type BOSCH diesel fuel injection pump test bench



Operating videos



BF1178 common rail injector and pump test bench

https://www.youtube.com/watch?v=0ZlHcqYqtMk

BF1176 common rail injector test bench

https://www.youtube.com/watch?v=88KhnEcvTDs&feature=youtu.be

CRI common rail injector repair instruction

https://www.youtube.com/watch?v=lzLWMoYlMQk





Machine Details

Our 12PSBB-BFC diesel fuel injection pump test bench is our best seller model, which is used to test mechanical pumps such as inline pumps and distributor pumps.

It adopts digital display control systems, which make it of more economical features.

Easy operating and save cost.



1. Features and Advantages

>>> Three system languages: Chinese, English and Russian (other languages can choose as customer's requirements).

>>> Main engine frequency conversionmanual and automatic two operating modes.

>>> Automatic mode can process multi- gears speed preset.

>>> Automatic oil measuring and counting system.

>>> Has short-circuit protection feature

>>> Two sets of air supply adjustment knobs on both sides,easy operation

>>> Automatic oil measuring plate (optional install).

 2. Functions



>>> Test each cylinder's oil supply quantity under different rotate speed.

>>> Check each cylinder's injection timing under static state.

>>> Check the performance of mechanical governor.

>>> Test the electromagnetic valve of distributor pump.

>>> Test the tightness of injection pump.

>>> Measure the pump body internal pressure and oil return pressure of distributor pump.

>>> Check the performance of pressure equalizer, pneumatic governor.

>>> Equipped with DC.1 2V/24V power supply, used for magnetic valve's driving and testing.

3Technical Parameters

Technical Items Parameters
Voltage380V/22V
Rated output power7.5KW/11KW/15KW/ 18.5KW/22KW
Speed0--4000r/min
Oil supply10L/min , 20L/min
Oil supply high pressure0~3.5Mpa
Oil supply low pressure0~0.35Mpa
Air supply pressure range0~0.15Mpa
DC power12V/24V
Fuel oil temperature40 ± 2 ℃
Size2150 × 750× 1850mm
Weight910kg

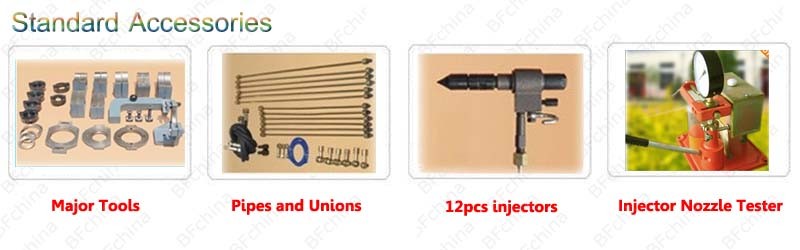

4. Optional Accessories and Tools
5Applications

 >>> Vehicles: Automobiles, tractors, agriculture machines, dynamos, engineering machinery



>>>  Sea Transportation



>>>  Scientific research of teaching



>>>  National defense

After-sale service



1. Technical support online service provided.

2. Technical files service provided.

3. On-site training service provided.

4. Spare parts replacement and repair service provided.

Packaging & Shipping



>>>  Packaging : wooden case with water-proof membrane

>>>  Delivery: within 15 days after receiving the deposit
